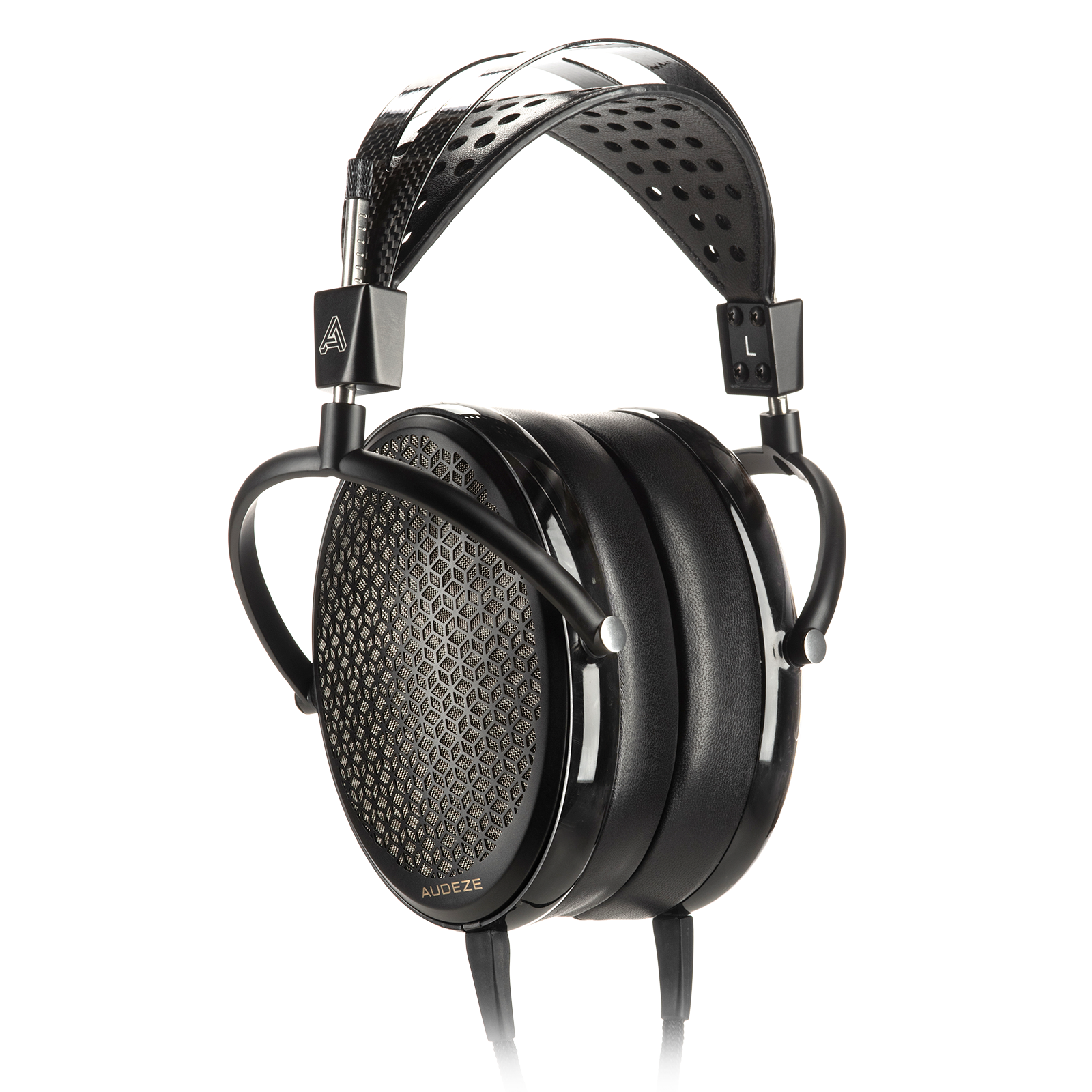

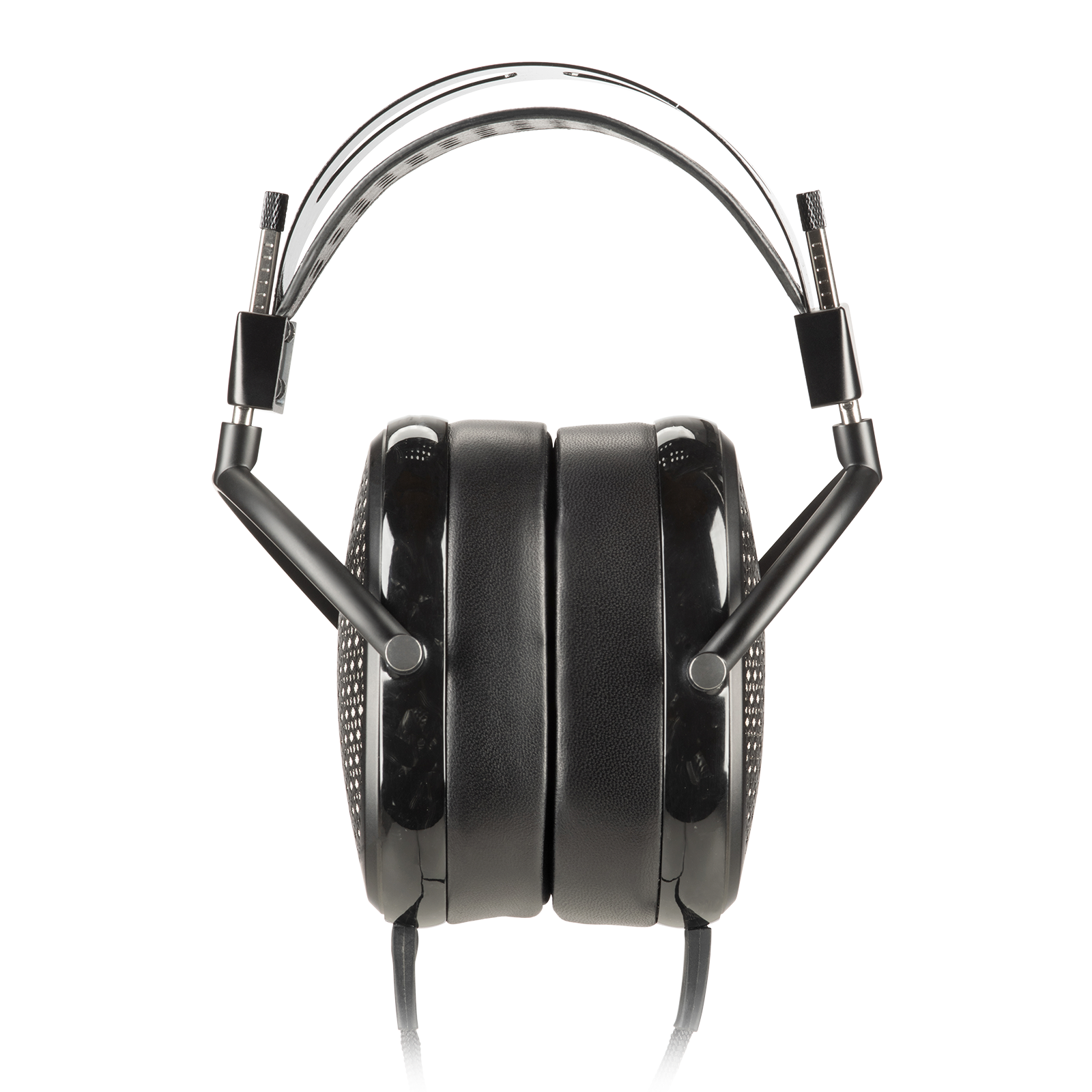

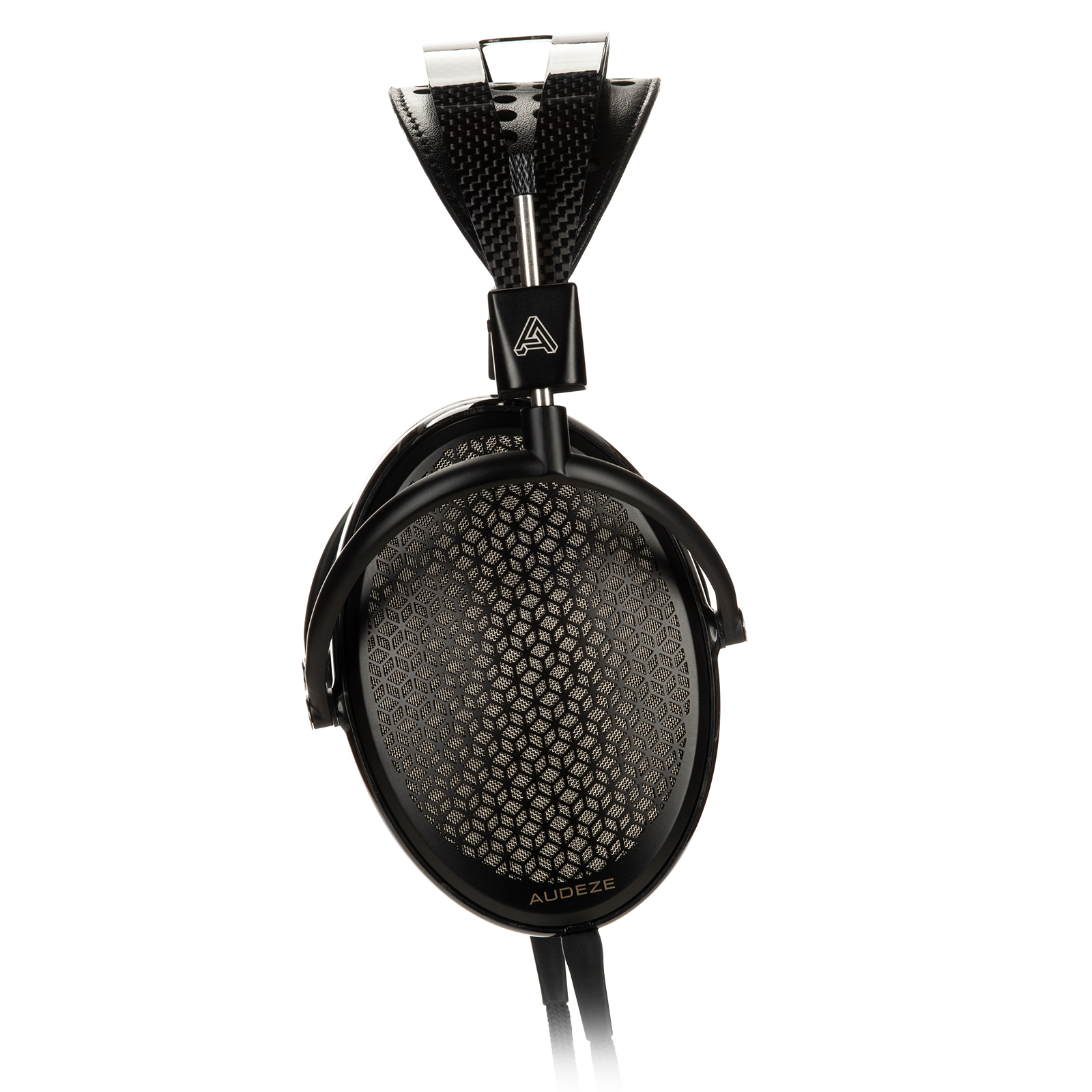

Featuring the most advanced electrostatic technology in decades, Audeze proudly introduces the CRBN electrostatic headphone (pronounced “carbon”), which features a new Patent-pending polymer film with suspended carbon nanotubes to eliminate problems commonly found in previous electrostatic designs. Originally developed for MRI medical applications, we've adapted those innovations for the audiophile version of CRBN, which top audio professionals have called the best sounding electrostatic headphone to-date.
With the biggest technological advance of electrostatics in decades, Audeze has patented a new polymer film with carbon nanotubes, and eliminates the problems of older designs with laminations and vacuum deposition. Originally developed for a product we designed for hospital MRI machines, our new CRBN (pronounced “Carbon”) electrostatic headphones are a superior solution. And yes, our new patented tech can be used in full-range speakers.
215-EX-1121-00
Audeze originally developed this new technology working with Prof. Mark S. Cohen Ph.D., UCLA School of Medicine and his team, for use in magnetic resonance imaging (MRI). Typical ferrous metals could not be used, so we had to develop a new material, and that led us to patent a special thin film with suspended carbon nanotubes. This solves the problems associated with lamination and deposition on the film.
The CRBN driver includes a revolutionary ultra-thin diaphragm with carbon nanotubes suspended inside the material – unlike other electrostatic diaphragms, there is no coating. Because the charge is distributed throughout the film, this results in a uniform driving force that reduces distortion and improves clarity, resolution and transparency.
"It actually felt like I was in the room that it was recorded in."
Margaret Glaspy - Singer, Songwriter, Guitarist, Producer
CRBN offers supreme comfort with its lightweight construction. At 470 grams, the minimalist design features materials such as magnesium and carbon fiber, which shaves off every gram while maintaining strength. The earpads are extra plush and slightly oversized, for a great seal and pillow-soft, cranium-cradling comfort.
"It actually felt like I was in the room that it was recorded in."
Margaret Glaspy - Singer, Songwriter, Guitarist, Producer

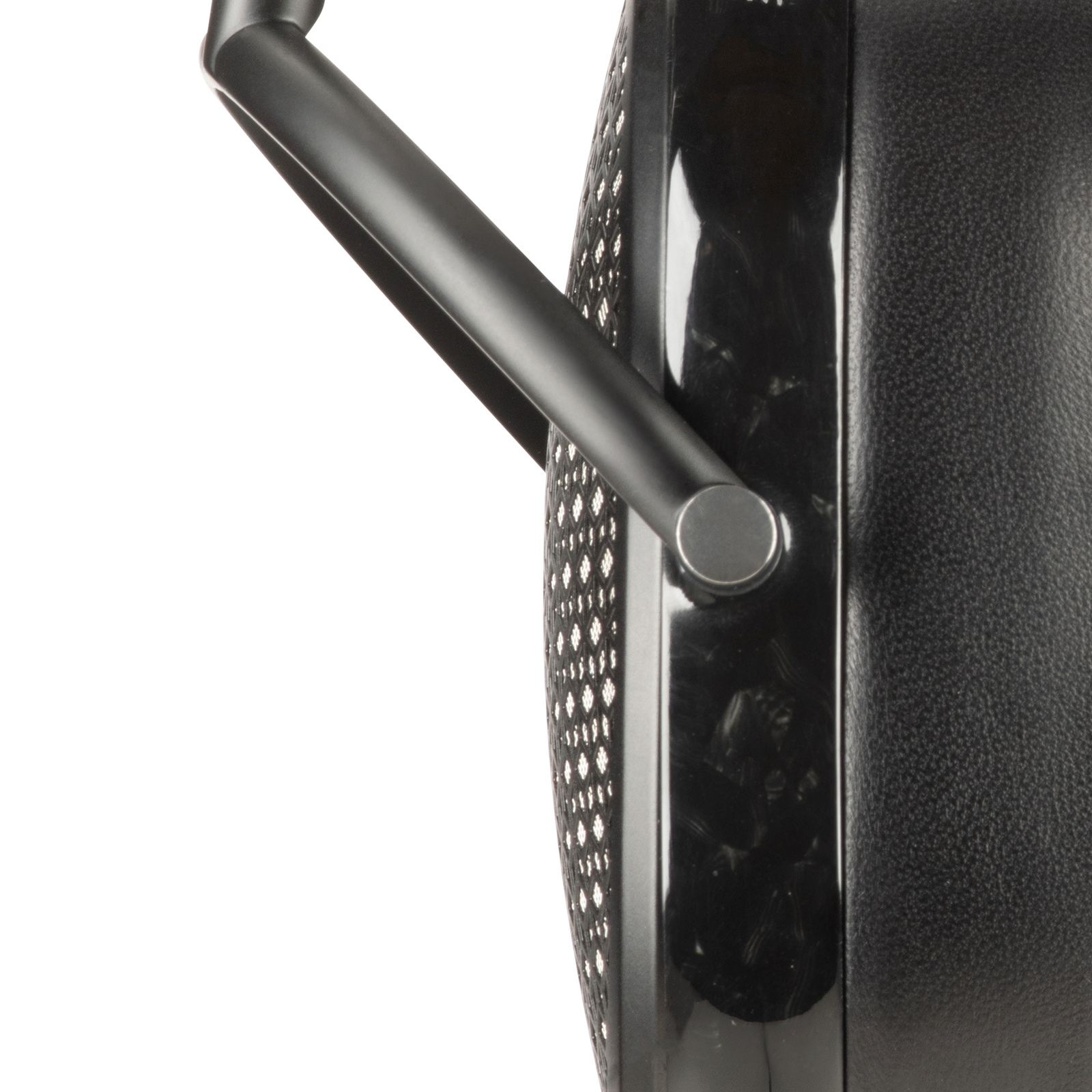

CRBN is the ultimate in luxurious design, from the smooth curves of its uniquely etched grill to the depth of its finely polished marbled graphite acetate rings. Featuring hand-stitched premium leather, every detail has been fine-tuned, all the way down to the feel of the machined aluminum 5-pin connector.
CRBN is compatible with “Stax Pro Bias” 580 Volt amplifiers such those from Woo Audio, Linear Tube Audio, Mjolnir Audio, Headamp, Stax (of course) and others. The cable is terminated with the industry standard 5-pin barrel connector for maximum compatibility.
| Specifications | |
| Style | Over-ear, open-back |
| Transducer type | Push-pull electrostatic |
| Functional bias voltage | 580 VDC Stax Pro Bias |
| Electrostatic capacitance | 100 pF (including cable) |
| Diaphragm type | Ultra-thin custom carbon nanotube |
| Transducer size | 120mm x 90mm |
| Frequency response | 20Hz - 40kHz |
| Maximum SPL | >120dB |
| THD | <0.1% @ 90dB |
| Attached cable | 2.5m OCC monocrystal copper, 5-pin Pro Bias |
| Housing | Magnesium, stainless steel and polymer acetate |
| Earpad material | Premium leather |
| Headband | Carbon fiber and premium leather |
| Weight | 470g |
Includes : CRBN Headphone | Premium Aluminum Travel Case | Certificate of Authenticity
