Gorilla wearing LCD-R headphones with Schiit logo
A Special Collaboration Between Audeze & Schiit

Schiit Jotunheim-A is a unique current-drive headphone amplifier, which inspired Audeze to develop the LCD-R headphone. The LCD-R impedance is only 2 ohms, and uses our new patented Parallel-Uniforce technology. We refer to the LCD-R driver as a Ribbon instead of Planar due to the extremely low impedance and over 98% trace coverage of the diaphragm surface.

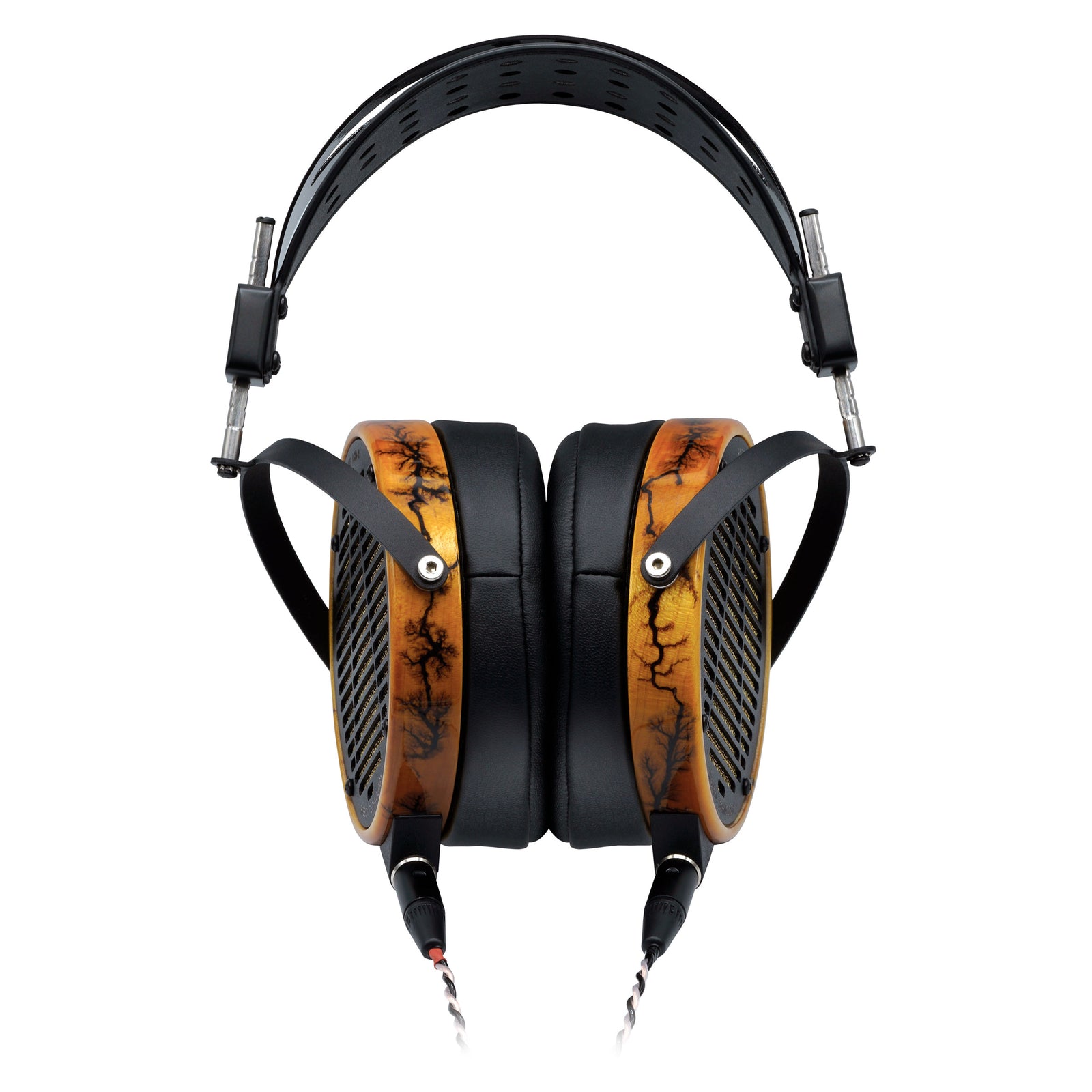

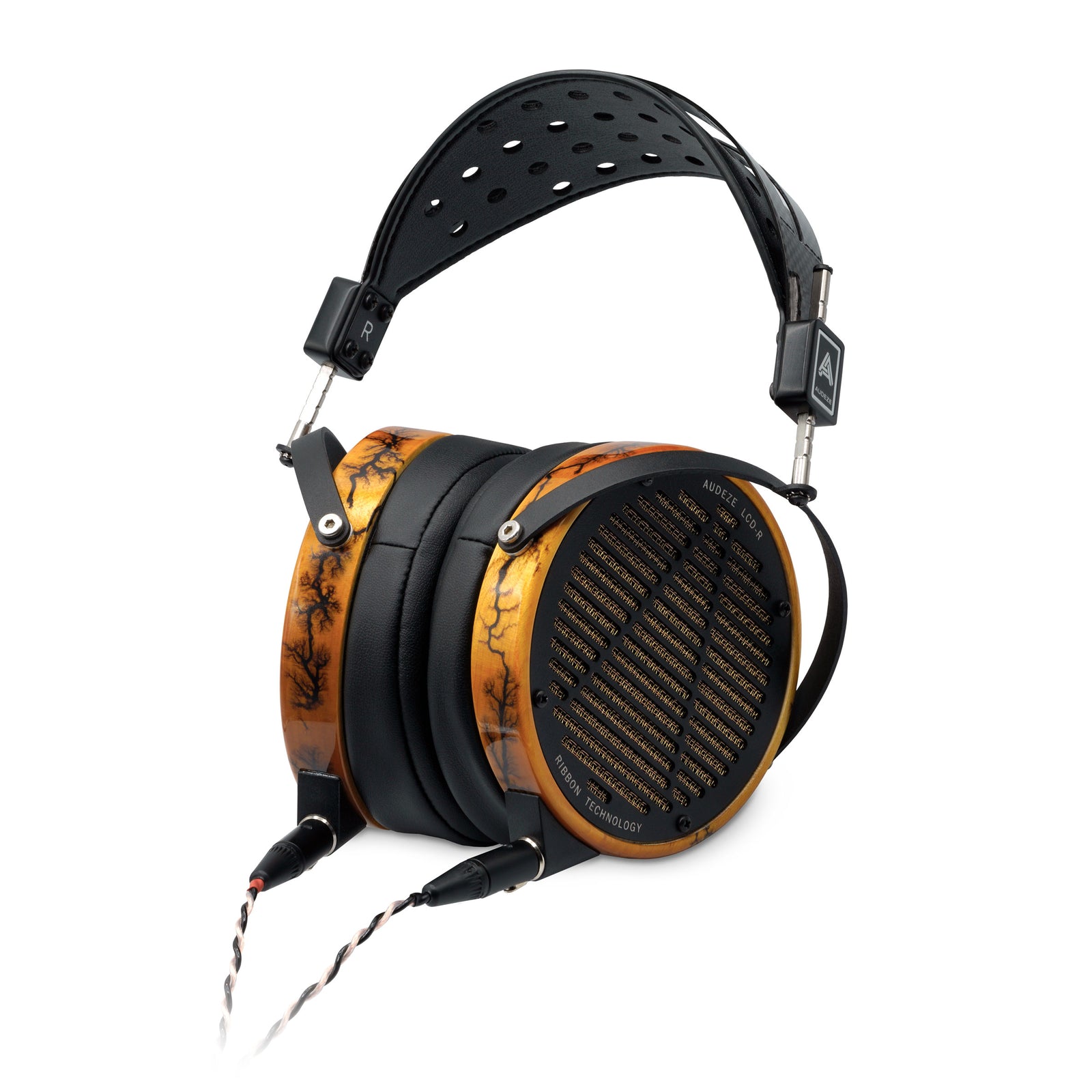

LCD-R

400-RC-0115-00

This is a legacy product and no longer available for sale

Audeze and Schiit are building only 67 sets of these LCD-R headphones and Jotunheim-A amplifiers. They are offered on a first come, first served basis and are ready to ship NOW.

  • 3 Year driver warranty
  • 5 Year amplifier warranty with Schiit
  • Handcrafted in small batches
  • Free US Shipping
  • International customers are responsible for carrier shipping charges and import duties

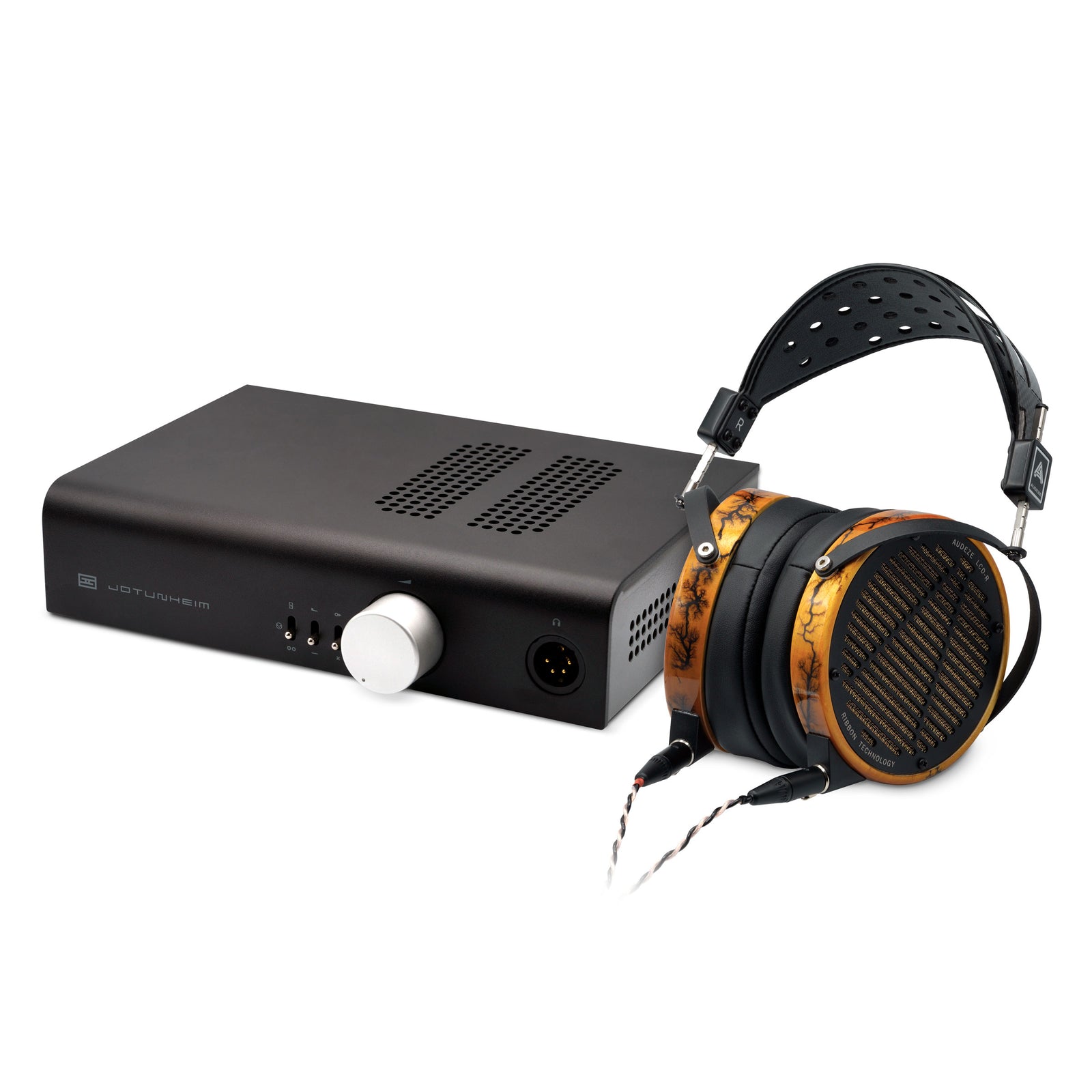

Jotunheim-A Amplifier

Some Current Schiit. Not Old Schiit.

The LCD-R comes with a customized Schiit Jotunheim model A current-drive headphone amp. Specially modified by Schiit, the Jotunheim-A offers the ideal electrical match to bring out the best performance in our extremely low impedance drivers. The LCD-R is engineered to work exclusively with the included Schiit amp and should not be used with any other amplifier.

So how does it sound?

S-M-O-O-T-H, but very detailed. There's something a little different, and very special about extremely low impedance drivers mated with a dedicated current-drive amplifier. Once you listen, you’ll be convinced. But just in case you’re not, you have 30 days to return both the amp and headphones.

LCD-R Grille detail

What's a Lichtenberg?

The LCD-R is adorned with our unique Lichtenberg Fractal wood rings. These are handcrafted by shooting precise pulses of high voltage electricity to enhance the natural patterns of the figured Maple. This process makes every pair of LCD-R rings a two-of-a-kind creation.

Lichtenberg fractal wood
Very, Very Limited Edition

Audeze and Schiit are building only 67 sets of these LCD-R headphones and Jotunheim-A amplifiers. They are offered on a first come, first served basis and are ready to ship NOW. The retail price is $2,500 for the set. The headphones will not be sold separately, so don’t even ask.

NOTE: You MUST use the LCD-R with this particular Schiit amplifier. Using any other amplifier will void the warranty.

115 volt and 230 volt versions available. 100 volt version for Japan is not available.

Package Includes:

Specifications

Style

Over-ear, open-back

Transducer type

Ribbon

Magnetic structure

Double Fluxor™ magnet array

Phase management

Fazor™

Magnet type

Neodymium N50

Diaphragm type

Ultra-thin Parallel Uniforce™

Transducer size

106 mm

Maximum SPL

>130dB

Frequency response

5Hz - 50kHz

THD

<0.1% @ 100 dB SPL

Sensitivity

103 dB/1mW (at Drum Reference Point)

Impedance

2 ohms

Custom connection

OCC monocrystal copper with female 4-pin XLR

Weight

615g

Jotunheim-A amplifier voltage

115V or 230V depending on model
